TB1160W
This is a powerful machine near the top of the range. One of Takeuchi's flagship machines, it has great reliability in every area, from its superior overall strength to its digging strength, ease of operation, operability and safety. This safety especially is recognized throughout the world.
- Features
- Specifications
- Dimensions
- Appearance
OPERATOR COMFORT
Viscous mount suspension CAB
ROLL UP FRONT WINDOW with gas spring lift assist cylinder
Auto Air Conditioner
Cup Holder, Cigar Lighter and Ash Tray
Liquid Crystal Monitor
EASE OF OPERATION
LCD Monitor
- Operation Gauge / Fuel Consumption Gauge
- Service Port 1 / 2 flow can be adjusted by LCD monitor
- Back Camera (OPTION) allows to see your back
- Engine details can be described on LCD
Engine Hydraulic Fan Drive allows you to adjust the rotation of fan drive for decreasing fuel consumption
Proportional Hydraulic Control for Service Port1
Environmental Sensitivity
New emissions compliant engines are designed to meet the most strict exhaust emission standards worldwide.
SAFETY
ROPS / FOPS certified Cab
Integrated Maintenance Connector
Left & Right Side Mirror
Rear Camera (OPTION)
Standard specifications and performance
| Weight | |
|---|---|
| Operating Weight kg | 14,530 |
| Bucket | |
| Bucket Capacity（JIS）m3 | 0.505 |
| Bucket Width mm | 1,080 |
| Engine | |
| Make/Model | ISUZU / AI-4JJ1X |
| Type | 4 / 4 Cycle |
| Rated Output kW/min-1 | 95.0/2,200 |
| Fuel Tank L | 226.5 |
| Dimensions | |
| Overall Length mm | 5,930（5,990） |
| Overall Width(track expanded/unexpanded)mm | 2,550 |
| Overall Height mm | 3,985 |
| Track Length mm | N/A |
| Track Width mm | 2,550 |
| Minimum Ground Clearance mm | 275 |
| Operating Range | |
| Maximum Dig Depth mm | 5,555 |
| Maximum Vertical Dig Depth mm | 4,965 |
| Maximum Dump Height mm | 7,580 |
| Maximum Dig Height mm | 10,030 |
| Maximum Dig Radius mm | 8,885 |
| Maximum Floor Dig Radius mm | 8,705 |
| Rear Clearance Radius mm | 2,065 |

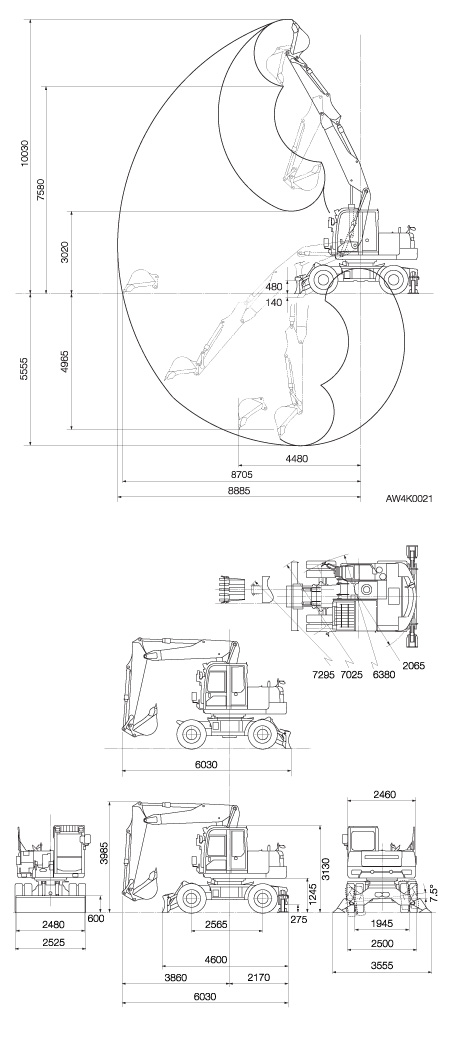

Dimensions

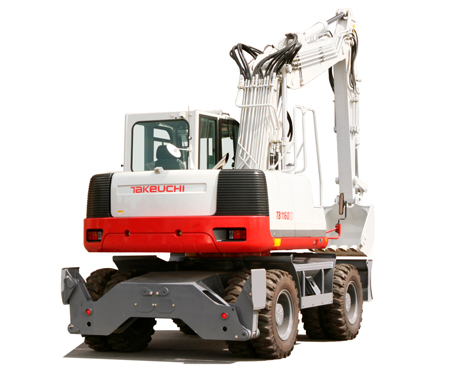

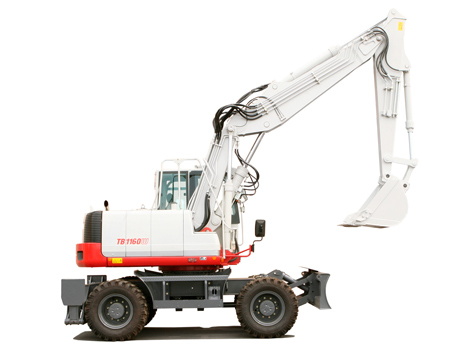

Appearance
