TAKEUCHI | PRODUCTS | Track loaders | TL130

Construction Machinery | TL series

TL130

TL130

These rubber track loaders are consistently ahead of their time with their basic structure. Popular aspects of these machines are the universal mounting bracket that enables extensibility, and the tilt-back operator's compartment that provides easy service access.

PDF Catalog

  • Features
  • Specifications
  • Dimensions
  • Appearance

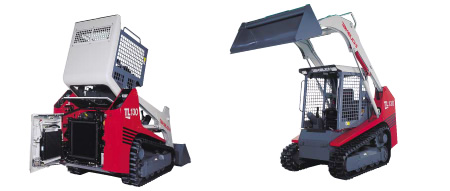

Tilt-back operator's compartment

Tilt-back operator's compartmentThe tilt-back operator's compartment provides easy service access.

Rubber tracks

Rubber tracksRubber tracks deliver a high level of safety.

Standard specifications and performance

Weight
Operating Weight kg 3,400
Bucket
Bucket Capacity(JIS)m3 0.351(heaped)
Bucket Width mm 1675
Engine
Make/Model Yanmar 4TNV98
Rated Output kW/min-1 49.2/2450
Fuel Tank L 75
Dimensions
Overall Length mm 3,430
Overall Width mm 1,580
Overall Height mm 2,235
Front Clearance Radius mm 2,080
Rear Clearance Radius mm 1,590

Dimensions

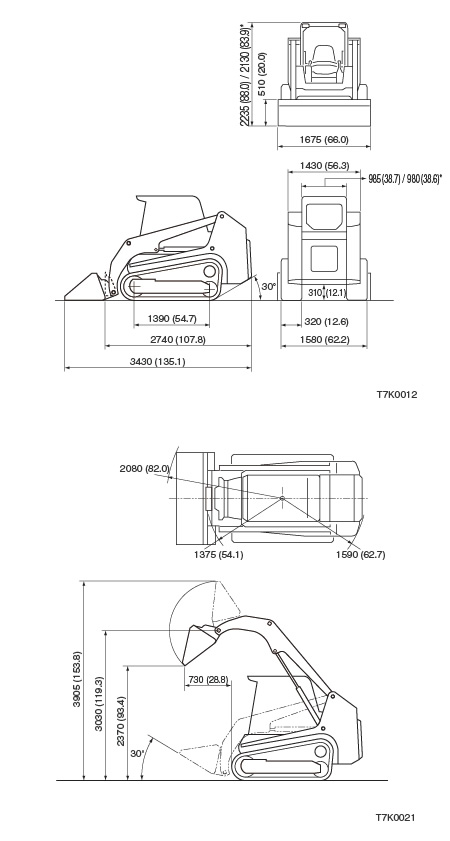

TL130 Dimensions

Appearance

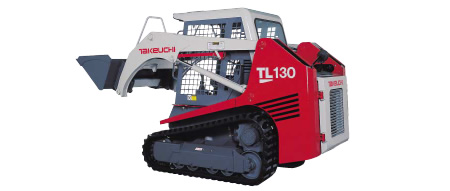

TL130 Appearance TL130 Appearance
